Learning experience/ with cost

[Tim Powell]

Trust me they won't come off on their own if properly seated. I have a home made puller make from 1/2" steel - one 12" diameter circular piece with a "U" cut into it and one 12" piece solid. Each has 4 holes for the long bolts that pull them together. I block the blade and tighten the bolts evenly using a very big wrench. They get so tight that the 1/2" cold rolled steel starts to bend, and still the bond of the taper does not break. I then rap the unit with a big hammer and eventually the prop comes free with a significant "pop".

The key is nothing but window dressing. The taper does all the work.

Bob
Just gotta ask you going to put your props on with no key.



[Bob Bradley]

Of course I'm using the key.



But only because I'm superstitious.



[Avenger]

It's bad luck to be superstitious.



[rsmith]

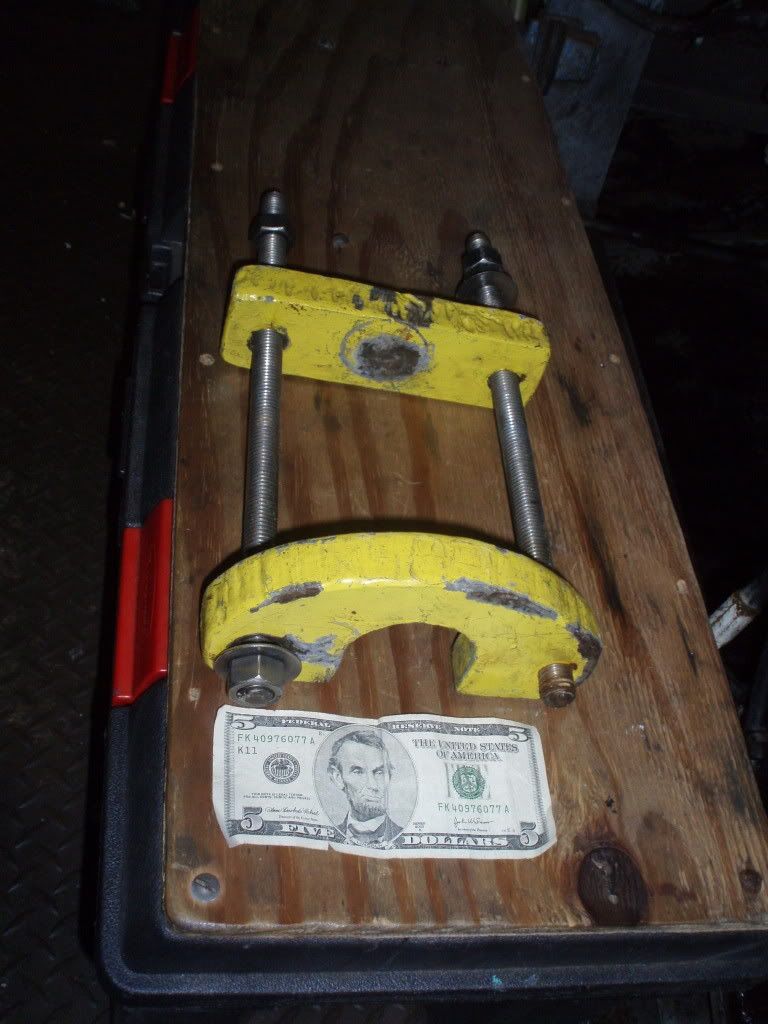

I made this little guy so I could pull the props underwater. the yoke side with the nut is slotted so I dont have to take it apart underwater.



[34Hatt]

If they came off so easily in reverse why would anybody buy a puller? A properly made and installed taper is an extremely strong connection. Watch the next time your yard pulls your props and see how much force is required. They don't come off easily.

So true and I have found that every time I pull mine off if takes more force
Maybe it is do to lapping each time

Since lapping does Improve the matched surface and Static fit I see they don't do valves anymore but you guys OVERREACT and missed the point you lap something together to get a better match plain and simple. As for a money maker just go buy a tube for $8 and put it on and spin. So easy a caveman can do it. And I don't remember anyone saying it can correct for a miss fit? Did I miss something?
You do realize You could have a lapped about 110 pairs of props in less time then it took to beat it to death LOL

Of yeah and who said anything about a Cylinder head valve just said a valve job more than one type out there!
And some still need to be lapped!



[34Hatt]

Of course I'm using the key.



But only because I'm superstitious.

That's OK but which not goes on first



[SKYCHENEY]

That's OK but which not goes on first

Oh no........You're not going to start THAT now, are you?



[Bob Bradley]

Gives a whole new meaning to "the nut behind the wheel".


But if you really want to know, I posted it earlier in the thread:

Press the prop onto the taper with the big nut, then remove it and put the small nut on closest to the prop. Finally, put the big nut on last.



[Boatnut]

I have trouble understanding how an improperly installed prop can cause the shaft to crack without some relatively serious vibration. I also think that many times something has been hit, and the operator thinks all is OK, because no serious vibration is occurring. Also seaweed or line can get caught up between the strut and the prop and cause over heating, and who knows what other damage.

I worked my butt off getting the vibrations out of my 42C, everyone comments on how smooth it runs. It took every thing from good prop balance, to shaft and strut alignment. Not to mention all the sweating and cursing during the process. LOL

As for divers installing a prop, I agree installing a new prop or shaft is best done with the boat out of the water. Pulling props to have them reconditioned and putting the same props back on, a diver should be able to do it, providing he knows what he is doing. Most divers don't know how to do it, or justdon't give a poop.



[Avenger]

So true and I have found that every time I pull mine off if takes more force
Maybe it is do to lapping each time

Or maybe it just seems harder as you get older.

And I don't remember anyone saying it can correct for a miss fit? Did I miss something?

Poor Bill's going to feel like I'm picking on him, but here's one:

scrod, the reason for lapping is that when a prop is repaired with a torch, there is the chance that the heat may distort the bore

Of yeah and who said anything about a Cylinder head valve just said a valve job more than one type out there!
And some still need to be lapped!

You're right. I had my mind on propulsion and thus assumed engines. Although I'm not familiar with the term being used elsewhere. What other equipment gets a "valve job"?



[George]

I didn't see anyone question whether or not your engine alignment was off. If you still have a mid-range vibration, I would suspect your in for more trouble. I've had shafts break simply because my engines slipped a little and had a similar symptom at mid rpm.



[Canuck Dennis]

What it all needs is a "lap dance" that usually hardens the valve stem enough for a short term high performance trial.



[bigbill]

well, if you are having a valve job done on a head, does it become a head job? oh sh%t i forgot, we were talking about props here



[Tim Powell]

I didn't see anyone question whether or not your engine alignment was off. If you still have a mid-range vibration, I would suspect your in for more trouble. I've had shafts break simply because my engines slipped a little and had a similar symptom at mid rpm.

High Mate
This all started with a small vibration got it fixed. There was a a small problem with the blade on the starbord side it was fixed computor balancec and the problem stoped no vibs. I went on a short overnight with wife and sister had a blast you kn ow stayed on the boat had good food tickled the wife a just had a ball. About a 30 mile run one way all in the sound. Came home the next day in the creek about 100 yards from the slip put the thing in reverse and the shaft broke. Looked at the other one and it was cracked in the about the same place nothing to do if i was going to keep boating but replace it..... After closs inspection we found it was due to misfit wheels they appeared tight but actually were not. Tim



[Maynard Rupp]

The only problem with keys is that when installing the prop folks choose to put the key in and then put the prop on. The key slides forward and rides up on the radius. Now the prop doesn't seat properly. The correct way is to put the prop on without the key, allign the grooves in the prop and shaft. NOW install the key. Do it this way and you will never have a high key problem.



[34Hatt]

Or maybe it just seems harder as you get older.

You're right. I had my mind on propulsion and thus assumed engines. Although I'm not familiar with the term being used elsewhere. What other equipment gets a "valve job"?

getting older Very Funny
Not

Last Job I did was a filled Valve for Helium on a dewar.



[Bob Bradley]

The only problem with keys is that when installing the prop folks choose to put the key in and then put the prop on. The key slides forward and rides up on the radius. Now the prop doesn't seat properly. The correct way is to put the prop on without the key, allign the grooves in the prop and shaft. NOW install the key. Do it this way and you will never have a high key problem.

Good point, Maynard. I was having that problem at first as well. I believe that is why my prop didn't get seated correctly by the diver. It's very hard to see, especially in murky water.

It also helps to dress the key a bit by sliding it on emory cloth on a hard flat surface. The key should be snug, but you shouldn't have to leat it with unreasonable force.



[jim rosenthal]

Tony's Tips ARTICLE DATE: August 1st, 2000
Propeller installation / Big Nut vs. Little Nut


To answer a common question that seems to pop up quite often and without getting too technical, you'll find that the thin nut is supposed to go on first and torqued to something less than full spec. The BIG nut then goes on and is brought up to full torque. That's what the good engineering will say.

BUT, from the practical standpoint (sometimes) and what seems to be done out in the field, it's a different story. I think I could write a small book on proper propeller installation, as there are many principles involved that the typical "yard employee" doesn't understand and, in the 20+ yrs I've dealt w/ shafts, props etc., I've run into some doozy examples of poor prop installation.
I've seen more than one vibration problem solved when the key was properly re-fitted so the prop didn't ride on it.. I've seen "hot props" put on only to see the prop not come off without pulling the shaft (or worse). A bronze prop that's been laying in the sun ( a "hot prop") may not come off when you need to pull it with normal methods. And, of course, I've seen many a prop come loose, only to lose it, and many a broken shaft, which I believe, in many cases, was due to the prop coming loose and working on the keyway.

This has led me to develop my own protocol for installing props. Some readers may already know some of these suggestions, but I'll go over the most important.
First things first: The Keyway - On both the shaft and the propeller I always make sure there are no sharp corners or burrs. Although proper machining techniques would dictate a radius in the corners of the shaft keyway, this is not always the case. But, all keys do need a radius on all corners so as to prevent riding in the corner of the keyway. This is besides the grinding that may be necessary for a "slipper cut" key. Always be sure that the key you have selected slides easily through the propeller keyway and into the shaft keyway. Yes, there are some who think that it should be tight; I disagree 110%. Just about all new props require some light filing / deburring in the keyway so the key will slide smoothly with no binding. I normally use a good, single cut file to dress the keyways/edges and my belt sander to radius/grind key stock.

As far as fitting the prop to the shaft, this should always be done BEFORE the key is used to ensure that the propeller and the taper are properly matched. A light spray of lubricant or smear of grease will allow you to install the prop and spin it on the shaft without the key to find out if there are any "catches." Many times you'll feel one keyway ride or catch on the other due to the imperfections of the machining. This is where lapping (filing) the two together will pay dividends. This can be done with standard light to medium grit valve grinding compound and only takes a few minutes to get a 95+% fit. It will also show you where your problem areas are. Larger props are sometimes undercut in the middle of the taper allowing only the small end of the taper and the large end of the taper to make contact with the shaft.

After the prop goes on the shaft properly without the key, a small mark or reference should be made as to how far up the prop goes on the taper before the key is installed. This reference point will guide you when the key is finally fitted to be sure that the propeller is fully seated on the taper and not riding on the key. This is the most common mistake in prop installations that I have seen.

As to the subject of lubrication between the prop key and taper, most yards seem to lean towards a "never-seize" type compound. Personally, I use a combination of Rector Seal #5 with a light spritz of WD-40. And, I use it liberally. Your choice on this, but the idea here is to fill any and all voids between the prop and shaft, allow the tapers to go together (slide) properly, thus keeping any crevice corrosion to a minimum. And, the only way you are going to get that NUT really tight, is to have a lubricant on the thread and in between the nut face and the prop.

When it comes to the nuts and tightening, I'm sure only a few may agree with me. I know the yards frown on my technique. But here goes..(and I've been doing it successfully for years and years). After all the above has been accomplished (and it doesn't really take very long unless we have a non-standard keyway), I always put the big nut on first with plenty of lubricant and sometimes a custom washer between the big nut and the prop. Depending on the shaft size, torque will vary from maybe 40-50-ft lbs on a 1" shaft to 100++++ of ft-lbs on a 2-1/2" shaft. Wait for 5 to 10 minutes after the first tightening to allow the excess lubricant to hydraulic out of the fitting between the prop / key / nut / shaft, etc. I then retighten the big nut again. Now comes my solution to prop nuts staying put, I clean the threads with spray brake-cleaner or whatever I have handy, smear a nice heavy dab of MarineTex or other common epoxy on the threads of the shaft (second nut only), and tighten up the small nut to something applicable to the shaft size. 3M 5200 or a similar high-strength urethane will also do an Okay job if it's allowed to cure first. But, an epoxied nut "don't go nowhere", (until you want it to). And it does what it does quickly.. And then, when you remove it someday, it seems like the worlds best self-locking nut as it comes off. When I'm in the yard working on big shafts, I'll sometimes use a propane torch to soften the epoxy/5200. Don't forget, it's not at all uncommon to warm a properly installed prop before you remove it anyway. Makes life easy most of the time.

As for cotter pins, all they do is catch monofilament line as they will not stop a prop nut from coming loose, unless of course, they're used with a properly fitted castellated nut. A much better trick to ensure the security of the rear prop nut mechanically is to cross drill it thru a hex corner, and properly safety wire it through the cotter keyhole ala "aircraft style."

I've touched on a few points here. From doing this type of work for many years and also seeing (first hand) many problems resulting from the lack of understanding some simple concepts involved in the installation of propellers, I hope this will help some our readers. Big Nut or Little Nut first doesn't seen to matter to me IF the prop is fitted properly and the NUT's are tightened to spec. And with a little glue or safety wire, I never worry.

P.S. A left hand prop is (usually) less likely to come loose than a right hand prop.. Ever wondered why??
Tony Athens | August 1st, 2000

Used with permission. Seaboard Marine is an established repower yard on the West Coast and has a lot of good articles on various topics on their web site. Tony Athens is also a longtime supporter of the www.boatdiesel.com forum, to which he has contributed much.



[Boatnut]

getting older Very Funny
Not

Last Job I did was a filled Valve for Helium on a dewar.

Any chance you were working on an MRI machine?



[34Hatt]

Any chance you were working on an MRI machine?

No but close we build and test Super conducting magnets for Accelerators.
Did build a small magnet once for a special test, prototype MRI that they were going to put a Rat in.
