[Phasma2128]

I have rebuilt vacuflush systems in the past. I’ve never seen a configuration like this. Does anyone know where the duck bill valves are located and what size?

Having trouble building a vacuum. The pump just runs and runs



[Captain Ralph]

Under the base of the pump and at the inlet.
Are you sure you have a duck-bill valve problem?
2" and an O ring.

https://ardemco.com/vacuum-generator-4-12-or-24-v/



[brettportzer]

I have rebuilt vacuflush systems in the past. I’ve never seen a configuration like this. Does anyone know where the duck bill valves are located and what size?

Having trouble building a vacuum. The pump just runs and runs

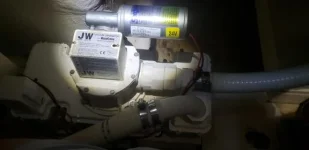

View attachment 60828

That is the newer style all in one, the box on the bottom replaces the football from 2 piece systems.



[Phasma2128]

Under the base of the pump and at the inlet.
Are you sure you have a duck-bill valve problem?
2" and an O ring.

https://ardemco.com/vacuum-generator-4-12-or-24-v/

I am not sure at all. I just know that a vacuum is not being generated as the stool won’t flush with the typical whoosh. It occasionally will work. Historically it’s been the duck bill valves. I once had to replace the bellows but really don’t think that is the issue



[Captain Ralph]

I am not sure at all. I just know that a vacuum is not being generated as the stool won’t flush with the typical whoosh. It occasionally will work. Historically it’s been the duck bill valves. I once had to replace the bellows but really don’t think that is the issue

There ya go.



[Phasma2128]

Thanks guys. 2” and an O ring should do it. The link to the parts drawing helped completely



[JD5652]

I am not sure at all. I just know that a vacuum is not being generated as the stool won’t flush with the typical whoosh. It occasionally will work. Historically it’s been the duck bill valves. I once had to replace the bellows but really don’t think that is the issue

If it was a compromised bellows... you would know it.... liquified poop would be all over the top of the unit.... or at the very least the odor would be...
