Can anyone post a v-16 fuel use/RPM chart?

[hyperfishing]

Can anyone post a v-16 fuel use/RPM/speed chart for a 58 sportsfish?

Or, just the motor would be fine. Thanks.



[saltshaker]

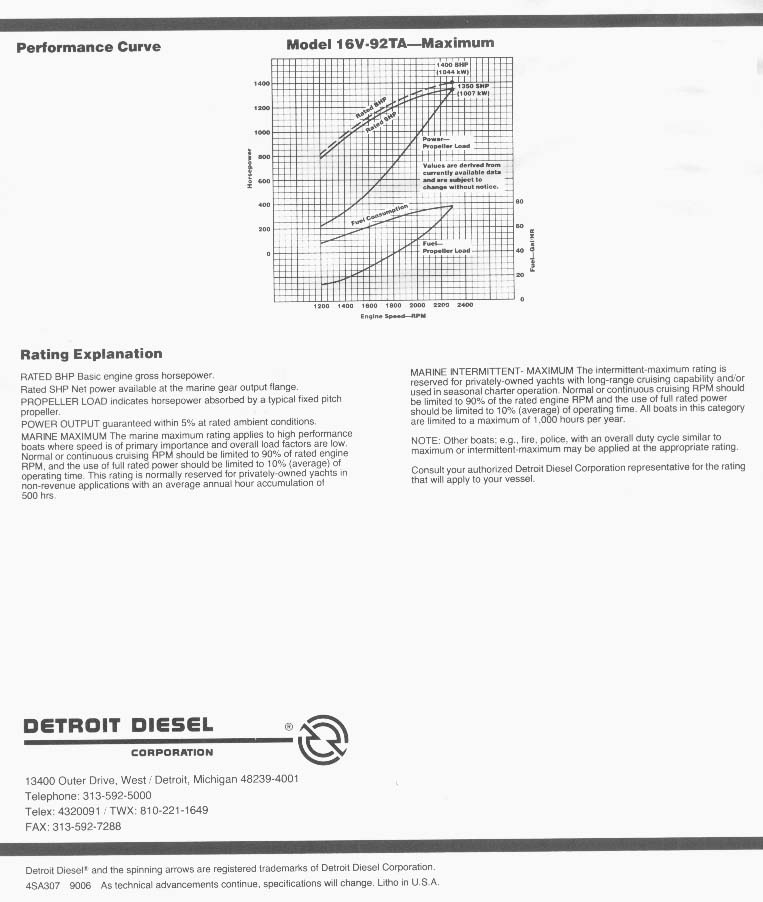

1400HP 16V92's will burn about 140gph at 2100 rpm and about 125gph at 1950rpm. That's what I was told a 1991 58 burned. Same as a 65C with the same engines. this is a link to a fuel curve
http://goldcoastpower.com/brochures/DD 16V-92TA 1400hp Brochure 2.jpg



[hyperfishing]

Thanks, and the minimum planing RPMs/speed/fuel use is?



[hyperfishing]

T.T. BTW those graphs are too small for me to SEA.

I have no idea what the minimum planing speed for a 1990ish 58C enclosed bridge is, or the fuel use at that speed.



[hyperfishing]

Any one have an answer to minimum planning speed/fuel use for a 58 enclosed bridge hat? Thanks.
